HD Dump Auto Mini truck

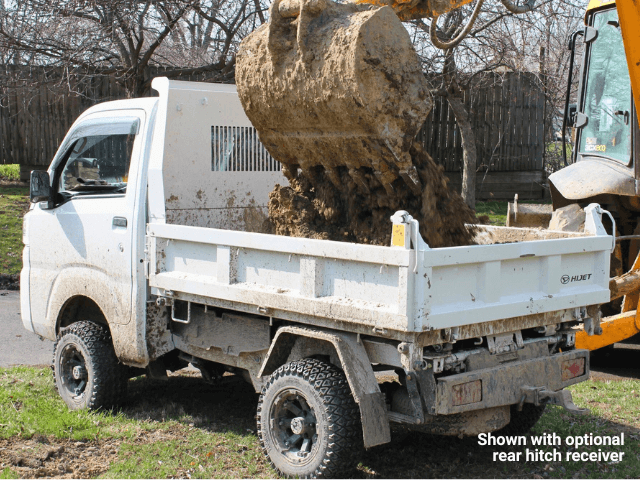

With a box that’s 6 ft 2 in long, 4 ft 6 in wide, and 1 ft deep, there’s an abundance of capacity for both hauling gear or dumping loads. Not quite as big as the Regular Cab model bed, but still much larger than you would get from a traditional work UTV. The bed itself is made from stainless steel over 1/16 inch thick and the bed construction is reinforced with steel pillars on each side to increase rigidity and reduce the risk of distortion. It’s mounted on a dedicated subframe to strengthen the chassis, again to prevent deformation under heavy loads.

The dump action is powered by a dedicated hydraulic ram that pitches the bed up to 50 degrees to ensure the load gets moving and dumps smoothly. There is a dedicated gravity gate at the rear that opens up automatically when dumping. The electro-hydraulic mechanism can be operated both when the mini truck is stationary, or when it’s moving. This is particularly popular with farmers who raise the bed at low speeds to spread feed evenly across a field.

This is the electro-hydraulic model that draws the power for the dump mechanism from the battery. If you need to be able to keep on dumping all day, then we recommend the PTO version that can keep on dumping so long as it has fuel as the PTO draws its power from the engine itself.

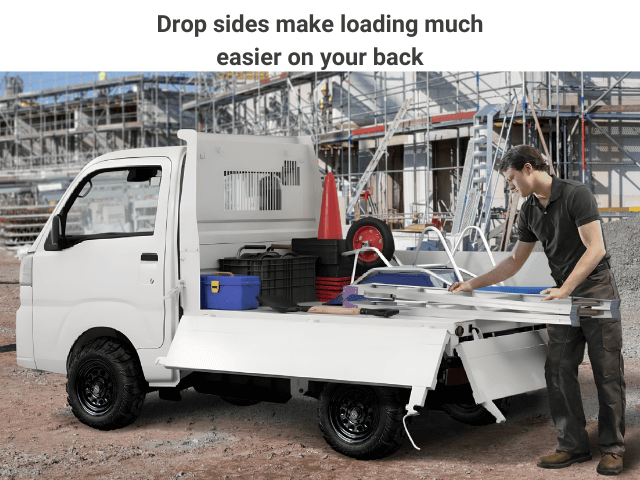

You can also use that bed just as you would the bed in any of our fixed-bed model. Pop the cotter pins and you can drop the two sides and rear gate to get them out of the way for loading and unloading. After all, it’s all very well having a long bed, but you don’t want to strain your back reaching in with a heavy bag of feed. The bed itself is just over 2 feet off the ground, but the drop sides as well as the foot step just behind the cab make access much easier and more ergonomic.
